Product Description

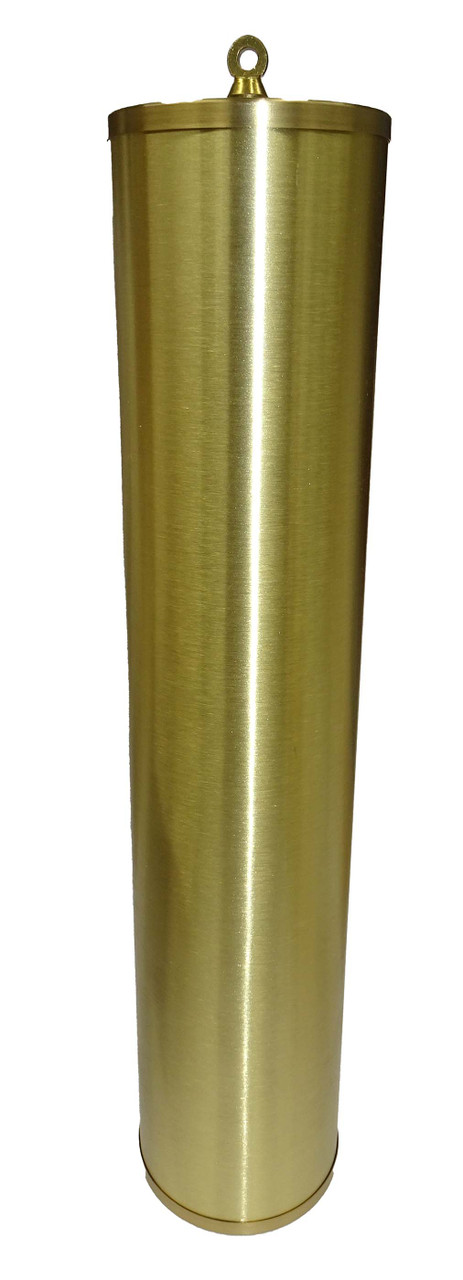

URGOS UW03 9-TUBE BELL MOVEMENT WEIGHT SHELL SINGLE 60 X 285MM
Genuine new Urgos single brushed brass weight shell for UW03083 and UW03108 cable driven triple chime nine tubular bell movements (9-tube).
Set includes 1 heavy solid brass shell (60 O.D. (58.8 I.D. x 285mm), 2 shell caps, 1 center rod, 1 eyelet hook, and 1 nib. No weight core insert filler is included. The new weight shell is the rare 11.22" (285mm) length used on only the Urgos nine tubular bell movements. Note that the weight shell is for only the Urgos nine-tube as the five-tube uses 60 x 245mm shells.
Made in Germany.
The UW03...B nine tubular bell movement weight core insert filler requirements (facing the clock front) per the Urgos Movement and Spare Parts Catalog Urgos 9T Weight Spec:
- Hour Strike: 3.5kg (7.7 pounds) (left side location)
- Time: 3.5kg (7.7 pounds) (center location)
- Chime: 8kg (17.6 pounds) (right side location)
Also available is the Urgos weight shell set of 3 (SKU UMS-285-3) and the complete set with the weight shell and core weight insert fillers (SKU WSC-UW9T).
