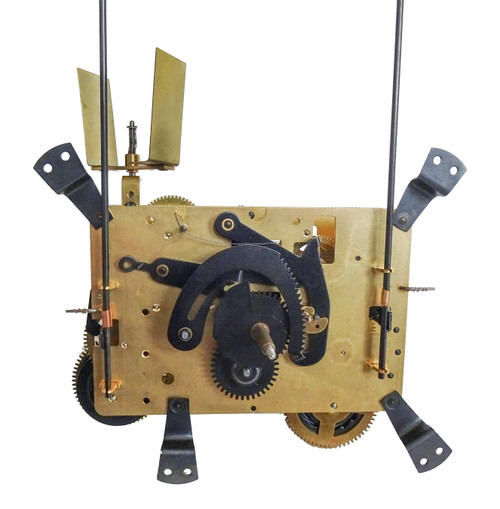

8 DAY REGULA 72 WITH DANCER PLATFORM AND MUSIC FAN - 40CM PENDULUM

Regula 72 is an 8 day movement that supports cuckoo call and gong on the half hour and hour.  Includes: chains, rings, hooks, hand nut, and minute hand bushing.   Movement supports music functionality (as the figures move, the music box...

REGULA 72 MOVEMENT (8 DAY WITH DANCERS, NO MUSIC)

Cuckoo call and gong on the half hour and hour.  Includes: chains, rings, and hooks. Dancer table height 81 mm (3.189") measured from the handshaft to the top of the platform. Pendulum length 28.5 cm (11.22").  The pendulum length is measured...

REGULA CUCKOO MOVEMENT SUSPENSION POST AND WIRE

Regula suspension post and pendulum loop wire. Post length: 1 1/2"L.

REGULA R-25 MOVEMENT CURVED LEVER

Regula R-25 movement front curved lever.

REGULA R-25 MOVEMENT STRAIGHT LEVER

Regula R-25 movement front straight lever.

REGULA R-72 CUCKOO PALLET VERGE

Regula R-72 cuckoo clock movement pallet verge. Arm length:  2" to "L". "L" length:  1 7/16".

REGULA R-34 CUCKOO PALLET VERGE

Regula R-34 cuckoo clock movement pallet verge. Arm length:  2" to "L". "L" length:  5/8".

REGULA R-25 CUCKOO PALLET VERGE

Regula R-25 cuckoo clock movement pallet verge. Arm length:  2 1/4" to "L". "L" length:  1 7/8".

BIRD POST FOR REGULA R72 8-DAY CUCKOO 10"L RIGHT

Right bird post for Regula R72 8-day cuckoo movements. Size:  10"L (254mm).

CUCKOO BELLOWS LEFT - SHORT ARM REGULA

Regula R-25 and R-34 1- or 8-day cuckoo bellows left short arm. Straight arm only size: 1 1/4"L.

CUCKOO BELLOWS RIGHT - LONG ARM REGULA

Regula R-25 and R-34 1- or 8-day cuckoo bellows right long arm. Arm only size: 1 5/8"L.

CUCKOO STRIKE ARM REGULA

Regula R-25 and R-34 1- or 8-day cuckoo movement strike arm. Arm only size: 3"L.

BIRD POST FOR REGULA R72 8-DAY CUCKOO 8 3/4"L RIGHT

Right bird post for Regula R72 8-day cuckoo movements. Size:  8 3/4"L (222mm).

BIRD POST FOR REGULA 1- AND 8-DAY CUCKOO 6 3/16"L

Bird post for Regula R-25 1-day or R-34 8-day cuckoo movements. Size:  6 3/16"L (158mm).

BIRD POST FOR REGULA 1- AND 8-DAY CUCKOO 10"L

Bird post for Regula R-25 1-day or R-34 8-day cuckoo movements. Size:  10"L (251mm).

VERGE FOR REGULA CUCKOO 4"L WITH 7/8" "L"

Verge 4"L leader (including "L" shape) for Regula cuckoo clocks. 22mm arbor length from verge front. Leader "L" is 7/8"L.

VERGE FOR CUCKOO 4 3/8"L

Verge 4 3/8"L leader (including "L" shape) for cuckoo clocks. 16mm arbor length from verge front. Leader "L" is 1/2"L.

VERGE FOR REGULA CUCKOO 3 1/8"L

Verge 3 1/8"L leader for Regula cuckoo clocks. 24mm arbor length from verge front. Leader "L" is 3/4"L.

VERGE

The verge pinion length not including the pivots is 11/16"L.  Between verge points at base is 21/32".  From back pinion tip to brass arm edge is 1 1/2"L.  Made for german clocks.

CUCKOO MUSIC GOVERNOR FOR 22T MOVEMENT

Cuckoo music governor for 22-Tooth music movements. 6-tooth pinion and .057" (1.44mm) diameter. Size: .7525" (19.22mm) bracket plate length x .8695" (22.08mm) bracket plate width, and .6285" (15.97mm) high. Brass and made in Switzerland.

REPAIR KIT FOR CHAIN WHEEL

There is no drilling required to replace a clock pivot with this assortment of replacement pivots. Simply select the replacement pivot closest to your needs, dress down the shaft of the clock wheel, insert into the end of the Ad-A-Pivot, and dress down...

CUCKOO CHAIN WHEEL COIL SPRINGS

Cuckoo chain wheel coil springs for left (C-283) or right (C-284).  Sold individually.

VERGE FOR REGULA CUCKOO 4"L WITH 1 1/8" "L"

Verge 4"L for Regula cuckoo clocks. 23mm arbor length from verge front.  Leader "L" 1 1/8"L.

REUGE MUSIC BOX SPRING

Complete Reuge music box spring and housing assembly with threaded shaft music box.

8 DAY REGULA 72 MUSICAL MOVEMENT WITH MUSIC FAN

Includes: chains, rings, hooks, hand nut, and minute hand bushing. Dancer table height 81 cm (31.89") measured from the handshaft to the top of the platform. Pendulum length 28.5 cm (11.22").  The pendulum length is measured from the suspension post...

1 DAY REGULA MUSICAL DANCER MOVEMENTS

Cuckoo call and gong on the half hour and the hour.  Pendulum lengths: 19.1, 23.2, and 28.4cm.  Available platform heights (measured from hand arbor to platform) are RM-25 58mm, RM-25L 74mm, and RM-25XL 85mm. RM-25 base plate 79.5 x 73mm with...

REGULA TRANSMISSION GEAR

Slips on music box shaft to connect to music chain gear on Regula 25 movements. Size: 1 5/16" diameter.

REGULA CUCKOO MOVEMENTS

The R-25 (1-day) and R-34 (8-day) has the cuckoo call and gong on the half hour and the hour.  The R-25 and R-34 come in 19.1, 23.2, and 28.4 cm pendulum lengths. R-25 base plate is 68 x 73mm with inside width of 20mm. R-34 base plate is 78 x 85mm...

HUBERT HERR 8 DAY CUCKOO MOVEMENT

Hubert Herr 8 day musical movement (HH-808). Includes: chains, rings, hooks, hand nut, and minute hand bushing. Not included: weights, pendulum, and hands. Plate Size: 85mm x 90mm. Weights required: 1500 gram.

CUCKOO MUSIC BOX

Swiss Made. Plays "The Happy Wanderer" and "Edelweiss". 22 Tooth. Shaft length 11/16".
