Product Description
KIENINGER QPA12 STRONG COIL 1/2" CHIMING QUARTZ PENDULUM MOV
The Kieninger QPA12-00 quartz chime pendulum movement features a powerful high-output coil designed to drive heavier, ornate pendulums in both wall and small grandmother floor clocks. The chime has a rich, high-quality sound, reminiscent of a tubular bell.
The QPA12 is a direct replacement for the Hermle 2214 and 2215 pendulum quartz movements.
Features:
- 1/2" (16mm) shaft .1905" (4.84mm) hour shaft diameter for dials that are up to 1/4" thick. Hermle or Kieninger battery hands fit this shaft.
- I-shaft threaded tip (requires I-shaft battery hands)
- Dual chime with Westminster or Ave Maria. The chimes play on each 1/4 hour and full melody at the hour and strikes the hour. Or can select to play the full Westminster chime and hour strike at the hour.
- Select the chime play between 24 hours a day or nighttime reduced volume for 8 hours.
- Volume control.
- 2 9/16" (66mm) speaker with high-quality sound.
- Speaker wires are 12 1/2" (32cm) long to allow mounting the speaker at the top of the case for optimal sound quality.
- Movement frame: 4 1/4"W x 2 1/4"H.
- Hardware included: fixation mounting nut, rubber washer, minute hand nut, and cap.
- Requires a Kieninger style pendulum hook, the Seiko breakaway rods with a solid hook will not fit.
QPA12 requires two "C" batteries which are not included. I-shaft hands or pendulum are not included.
Made in Germany by Kieninger.

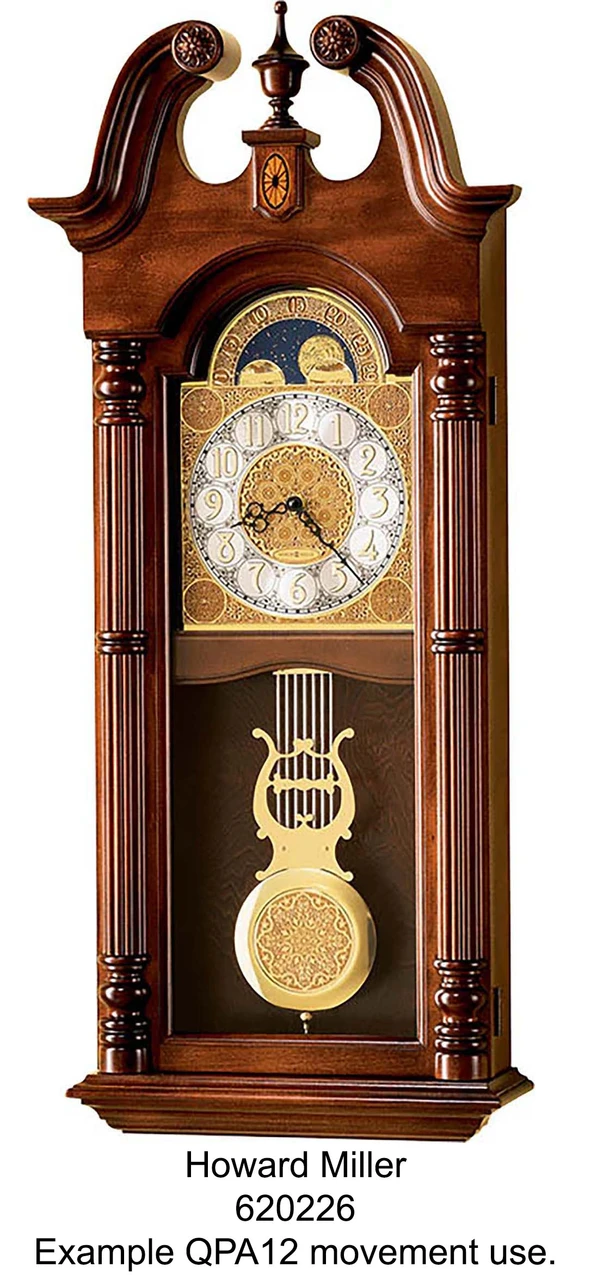

The QPA12 was used in Howard Miller Model 620226 Maxwell at overall case size of 34 1/4" and the Howard Miller Model 625551 Arendal II large 49" wall clock with a wood stick pendulum. The movement can also be used in grandmother clock cases with light weight pendulums.
Available is the Howard Miller Model 620226 Maxwell dial that is mounted to the case door for ease of battery replacement:
Available is a speaker case cover: BSC-218 Case Speaker Cover
