Product Description
HERMLE AND JAUCH SUSPENSION SPRINGS FOR LARGE BOBS
For floor clocks with Hermle and Jauch PL-77 movements. Select from SS-550 (Hermle or Jauch) for wood stick pendulum (.07mm thick) or SS-555 for Hermle lyre pendulum (.10mm thick).
SS-550 (Hermle E021-02483) Details:
Pin spacing: 15.5 mm
Spring thickness: 0.07 mm
Pin length: 7.8 mm
Hole diameter: 2.0 mm
Dimensions (L x W): 25.0 mm x 12.1 mm
For use with Hermle movements: 451-053, 1161-xxx, 461-053, 1171-xxx, 471-xxx, 1151-xxx with pendulum and bob 100 mm and 165 mm.

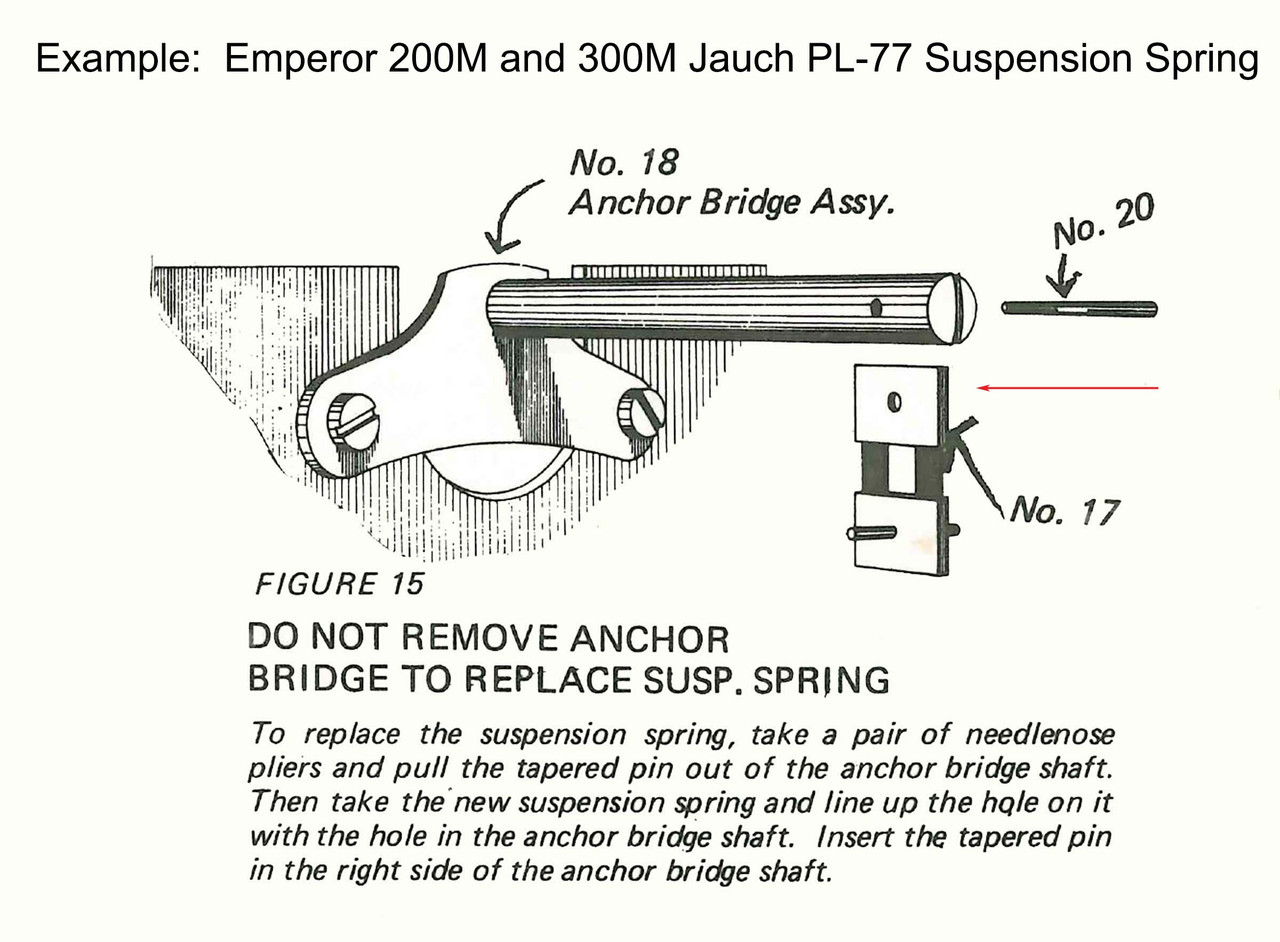

Note: the SS-550 works for the Emperor Model 200M and 300M Jauch PL-77 movements that have a wood stick pendulum. The Jauch PL-77 suspension spring measures between .06 to .07mm thickness. See picture.
SS-555 (Hermle E021-02481) Details:
Pin spacing: 15.5 mm
Spring thickness: 0.10 mm
Pin length: 7.8 mm
Hole diameter: 2.0 mm
Dimensions (L x W): 25.0 mm x 12.1 mm
For use with Hermle movements: 461- / 471- with pendulum and bob 220 mm and 270 mm.
Made in Germany.
