Product Description

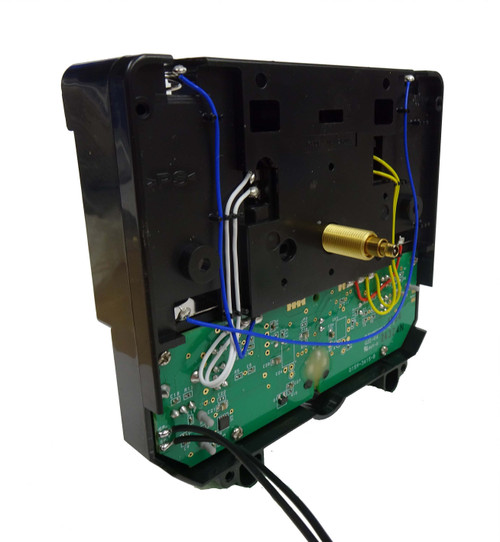

RHYTHM QUAD CHIMING QUARTZ MOVEMENT - 21.7MM I-SHAFT
Nice quality Rhythm quartz movement that plays Westminster, 4x4 Westminster, 4x4 Ave Maria, or Bim-Bam. 4x4 strike modes chime quarterly and on the hour with the sound of a tubular bell grandfather clock movement. Melodies without the 4x4 will not chime on the quarter hour.

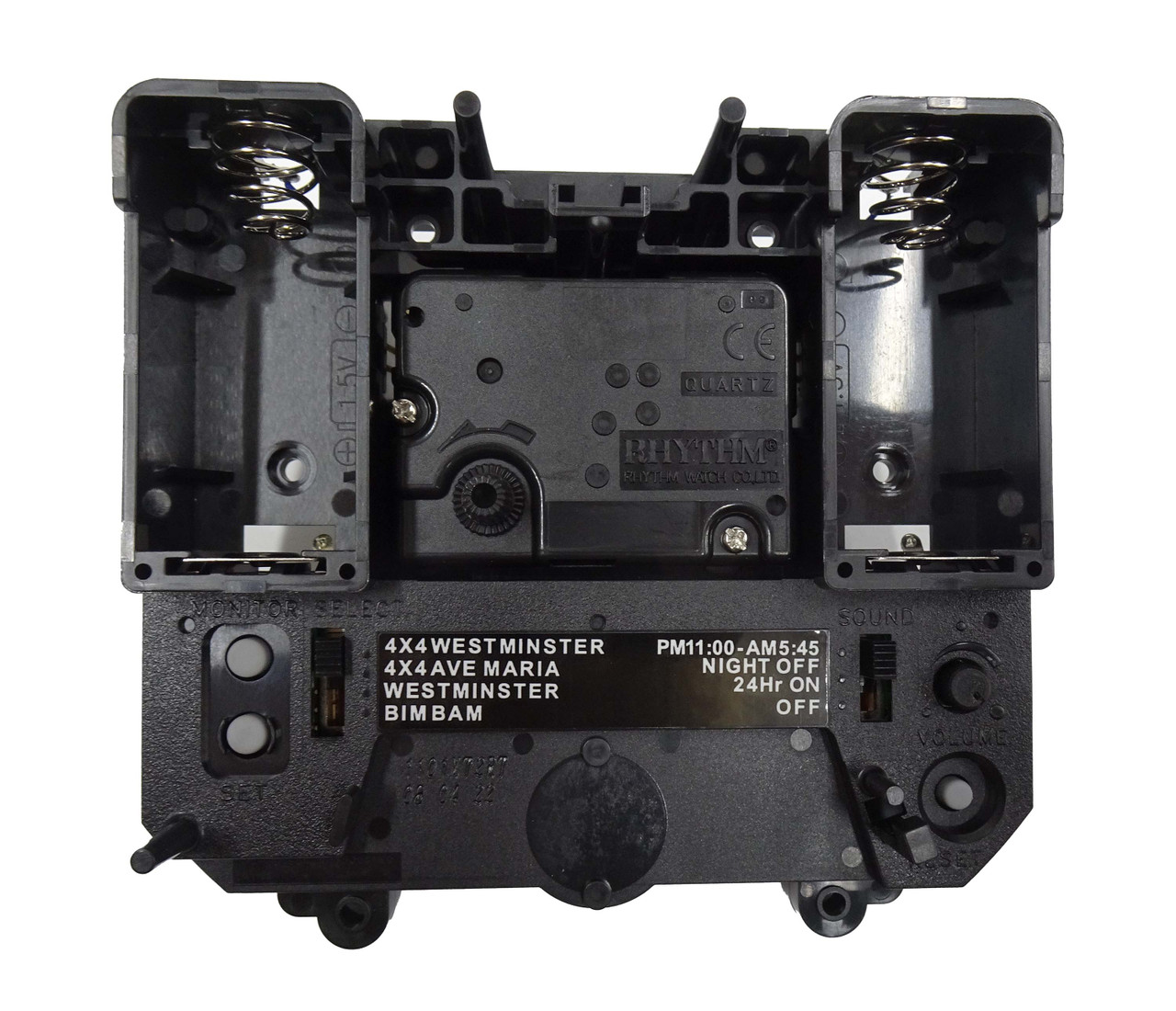

Monitor button to demonstrate the hourly strike. Volume control, night silence between 11:00pm and 5:45am, and 24 hour "on" or "off" selector. 3" round speaker with 34" electrical cord. Includes hardware.
I-shaft hand shaft length is 21.7mm (.85"). The threaded portion of the hand shaft is 9/16" (14mm). Will fit a dial up to 7/16" thick. There is a plastic inner post for the second hand. I-shaft hand means the minute hand has an oblong hole and the hour hand has a round hole. I-shaft hands are not included.
The movement supports hands up to a 7" hand length. The pendulums should not be any heavier than 4 ounces.
Requires two C batteries - not included. The MPR-4x4C movement does not support a pendulum.
If a heavy pendulum is required a separate heavy-duty pendulum drive unit is available: Heavy duty pendulum drive unit
Size: 4 9/16"W x 4 3/4"H x 1 1/8"D.
Used by many clock companies such as Howard Miller.
