    • Grid and Lyre Pendulum Rods and Brackets

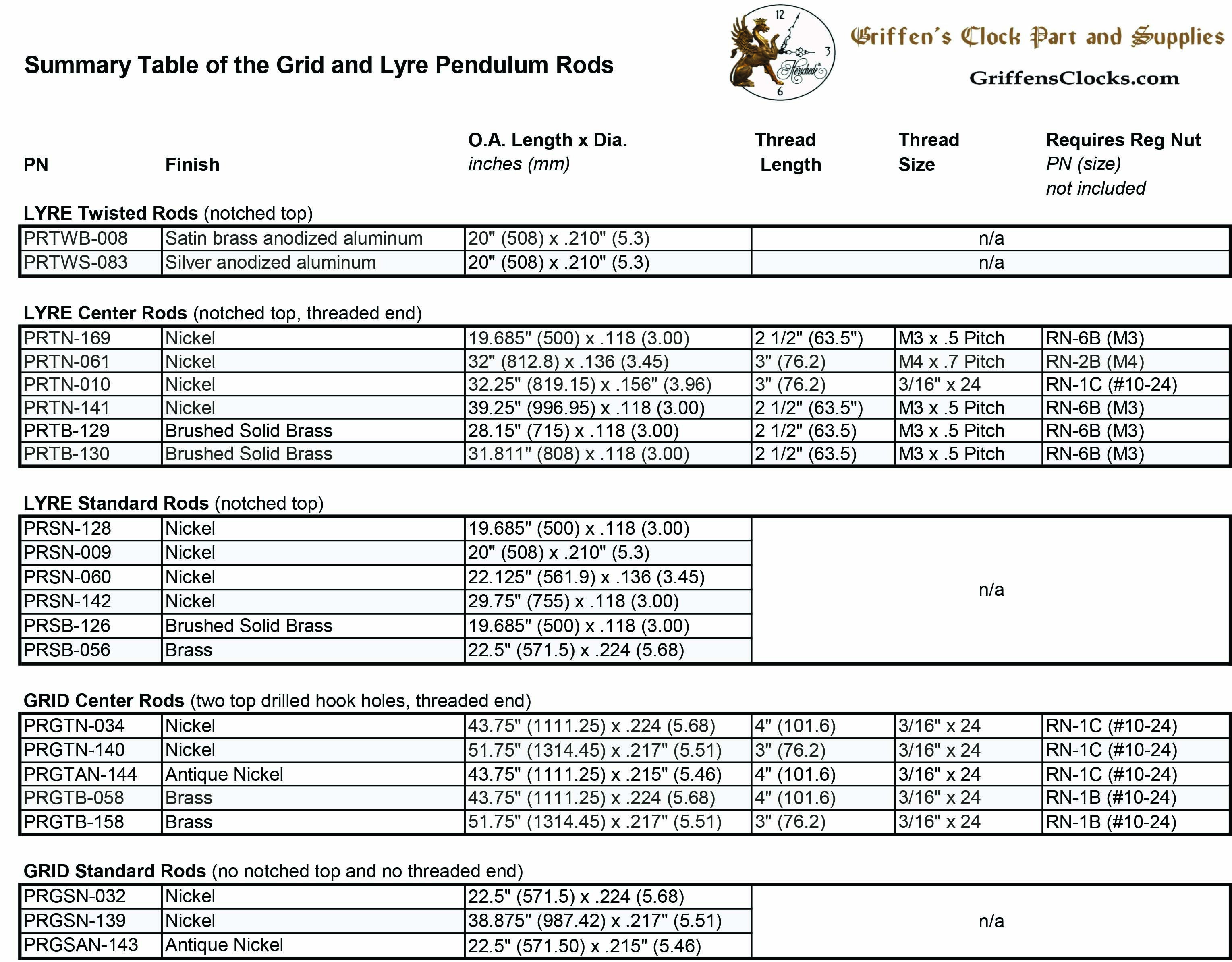

    Summary Table of the Grid and Lyre Pendulum Rods

    Key:

    • Threaded (rating threads at the end of the rod)
    • Standard (no rating threads on rod, has a single hole at the top approx. at .393" from end)
    • Nickel (polished steel)
    • Brushed Antique Nickel
    • All rods are clear lacquer coated.
    PN Desc

    O.A. Length x Dia.

    inches (mm)

    Threaded

    Length

    Thread Size

    Dia. x Thd/In.

    		 Standard Reg Nut
    PRTWB-008 Twisted Rod Brass 20" (508) x .210" (5.3) N/A N/A X N/A
    PRTWS-083 Twisted Rod Silver 20" (508) x .210" (5.3) N/A N/A X N/A

     PRSN-009  Rod Standard Nickel  20" (508) x .210" (5.3)  N/A  N/A  X  N/A
     PRTN-010  Rod Threaded Nickel  32.25" (819.15) x .156" (3.96) 3" (76.2)  3/16" x 24  N/A
     PRSN-032  Rod Standard Nickel  22.5" (571.5) x .224 (5.68)  N/A N/A  X   N/A
     PRTN-034  Rod Threaded Nickel  43.75" (1111.25) x .224 (5.68)  4" (101.6)  3/16" x 24 N/A
     PRSB-056  Rod Standard Brass        X N/A
     PRTB-058  Rod Threaded Brass      3/16" x 24   N/A
     PRSN-060  Rod Standard Nickel  22.125" (561.9) x .136 (3.45)  N/A  N/A  X N/A

     PRTN-061  Rod Threaded Nickel  32" (812.8) x .136 (3.45) 3" (76.2) M4 x .7 Pitch  N/A RN-2B
     PRSB-126  Rod Standard Brushed Solid Brass  19.685" (500) x .118 (3.00) N/A  N/A   X  N/A
     PRSN-128  Rod Standard Nickel  19.685" (500) x .118 (3.00) N/A  N/A   X N/A
     PRTB-129  Rod Threaded Brushed Solid Brass  28.15" (715) x .118 (3.00)  2 1/2" (63.5)  M3 x .5 Pitch N/A  RN-6B
     PRTB-130  Rod Threaded Brushed Solid Brass  31.811" (808) x .118 (3.00)  2 1/2" (63.5) M3 x .5 Pitch   N/A RN-6B
     PRSN-139  Rod Standard Nickel  38.875" (987.42) x .217" (5.51)  N/A X  N/A  N/A
     PRTN-140  Rod Threaded Nickel  51.75" (1314.45) x .217" (5.51)  3" (76.2) 3/16" x 24
     PRTN-141  Rod Threaded Nickel  39.25" (996.95) x .118 (3.00)  2 1/2" M3 x .5 Pitch  N/A RN-6B
     PRSN-142  Rod Standard Nickel  29.75" (755) x .118 (3.00)  N/A N/A  X  N/A
     PRSB-157  Rod Standard Polished Brass  38.875" (987.42) x .217" (5.51)  N/A  N/A  X N/A

    PRTB-158 Rod Threaded Solid Polished Brass 51.75" (1314.45) x .217" (5.51) 3" (76.2) 3/16" x 24





    • PENDULUM GRID STANDARD RODS - NICKEL
      Quick view

      PENDULUM GRID STANDARD RODS - NICKEL

      Choose from a variety of grid nickel standard pendulum rods.  Standard rods have either a single hole at the top or no holes and are all unthreaded.  For the first time, these rods are now available to assist in repairs of grid pendulums that...
      $21.00 - $24.00
      Choose Options

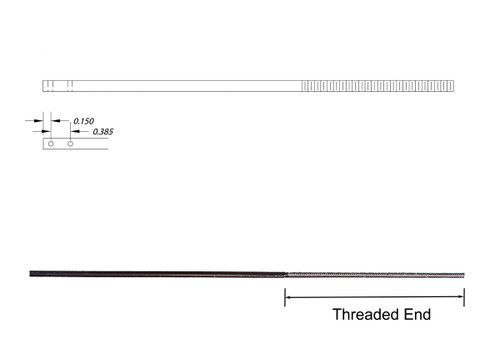

    • PENDULUM GRID CENTER THREADED RODS - NICKEL
      Quick view

      PENDULUM GRID CENTER THREADED RODS - NICKEL

      Choose from a variety of grid center threaded nickel pendulum rods.  For the first time, these rods are now available to assist in repairs of grid pendulums that can become damaged from clock moves or pendulums being dropped. All rods have rod top...
      $24.00 - $29.00
      Choose Options
    • PENDULUM LYRE 11 ROD TOP BRACKET - GERMAN PENDULUM LYRE 11 ROD TOP BRACKET - GERMAN
      Quick view

      PENDULUM LYRE 11 ROD TOP BRACKET - GERMAN

      Repair your lyre pendulum with this top rod plastic bracket.  This top bracket (solid on top) supports 11 rods (10 standard straight rods and 1 threaded center rod) that have a notch at the top.  See picture for rod notch.  The notched...
      $6.50
      Add to Cart
    • PENDULUM LYRE 9 ROD TOP BRACKET - GERMAN PENDULUM LYRE 9 ROD TOP BRACKET - GERMAN
      Quick view

      PENDULUM LYRE 9 ROD TOP BRACKET - GERMAN

      Repair your lyre pendulum with this top rod plastic bracket.  This top bracket (solid on top) supports 9 rods (8 standard straight rods and 1 threaded center rod) that have a notch at the top.  See picture for rod notch.  The notched rods...
      $6.25
      Add to Cart
    • PENDULUM LYRE 7 ROD TOP BRACKET - GERMAN PENDULUM LYRE 7 ROD TOP BRACKET - GERMAN
      Quick view

      PENDULUM LYRE 7 ROD TOP BRACKET - GERMAN

      Repair your lyre pendulum with this top rod plastic bracket.  This top bracket (solid on top) supports 7 rods (6 standard straight rods and 1 threaded center rod) that have a notch at the top.  See picture for rod notch.  The notched rods...
      $5.75
      Add to Cart
    • PENDULUM LYRE STANDARD RODS - NICKEL
      Quick view

      PENDULUM LYRE STANDARD RODS - NICKEL

      Choose from a variety of lyre nickel standard pendulum rods.  Lyre standard rods have a notch at the top and are unthreaded.  For the first time, these rods are now available to assist in repairs of lyre pendulums that can become damaged from...
      $18.00 - $22.00
      Choose Options
    • PENDULUM LYRE STANDARD RODS - BRASS PENDULUM LYRE STANDARD RODS - BRASS
      Quick view

      PENDULUM LYRE STANDARD RODS - BRASS

      Choose from a variety of lyre circular brushed solid brass standard pendulum rods.  The standard lyre rod has either a notch at the top or no notch and all are unthreaded.  For the first time, these rods are now available to assist in repairs...
      $18.00 - $28.00
      Choose Options
    • PENDULUM LYRE CENTER THREADED RODS - NICKEL
      Quick view

      PENDULUM LYRE CENTER THREADED RODS - NICKEL

      Choose from a variety of lyre center threaded nickel pendulum rods.  For the first time, these rods are now available to assist in repairs of lyre pendulums that can become damaged from clock moves or pendulums being dropped. All rods have top...
      $18.25 - $37.00
      Choose Options
    • PENDULUM LYRE CENTER THREADED RODS - BRASS
      Quick view

      PENDULUM LYRE CENTER THREADED RODS - BRASS

      Choose from a variety of lyre solid brass center threaded pendulum rods.  For the first time, these rods are now available to assist in repairs of lyre pendulums that can become damaged from clock moves or pendulums being dropped. The rods can be...
      $30.00 - $34.75
      Choose Options
