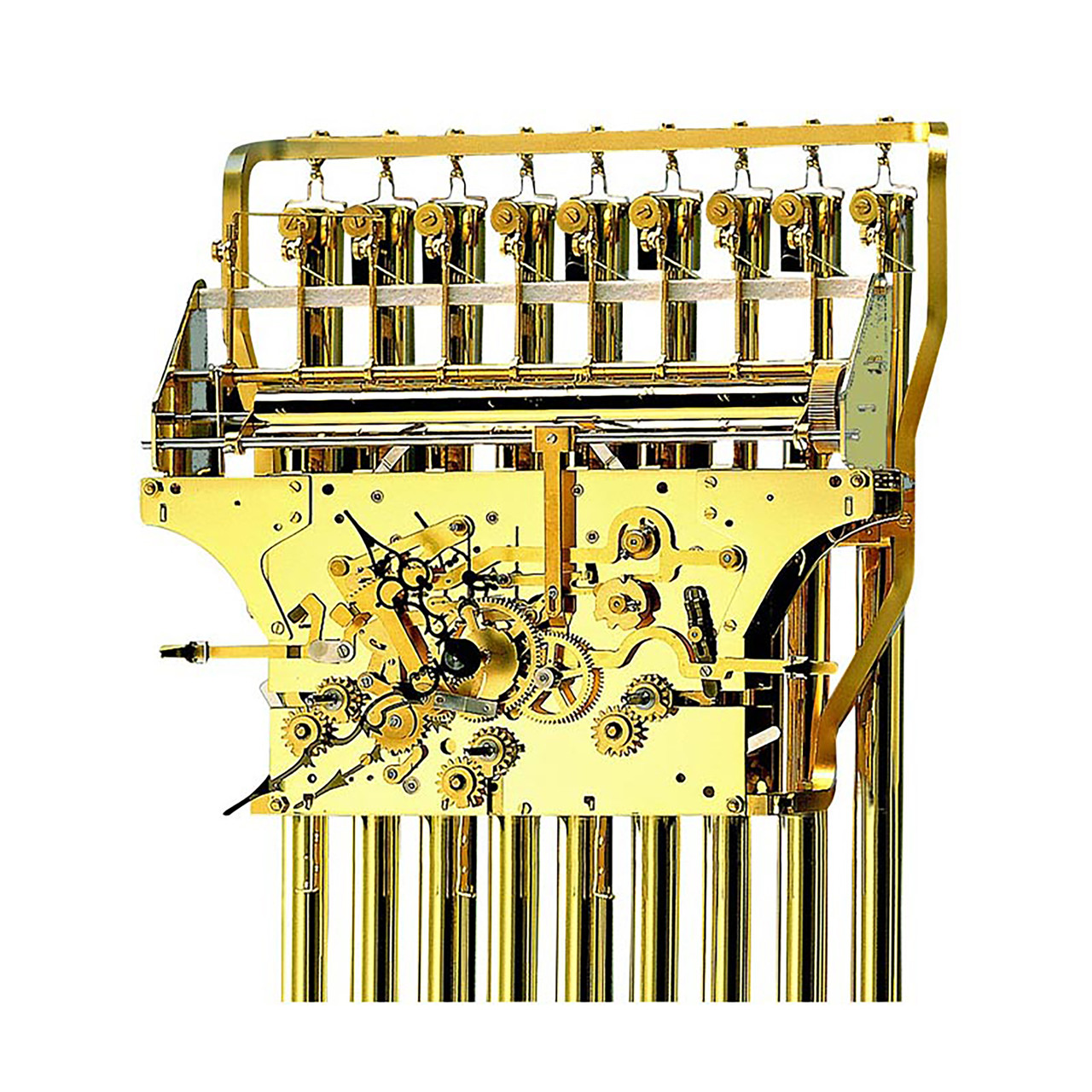

KIENINGER TRIPLE CHIME 9 TUBULAR BELL MOVEMENT HTU-06 - 116CM PENDULUM
One of the finest new tubular bell movements available is the Kieninger HTU. Kieninger HTU 06 tubular bell cable-driven three weight movement geared for 116 cm pendulum. The movement has a run time of 7 days.
The movement supports triple-chimes (Westminster, St. Michael, and Whittington) on nine tubular bells. The right selector: Whit, St. Mich., and Westm. The left selector strike, night shut off, and silent. The night shut off is the ANSO (Auto Night Shutoff) feature. When the ANSO night shut off is activated the chimes or strike are automatically turned off between 10:00 p.m. and 7:15 a.m.
The movement supports a recommended lyre or wood stick or compensation style pendulum. The lyre pendulum bob should be 270mm (10 1/2"), 220mm (8 1/2"), or 165mm (6 1/2") diameter. The wood stick pendulum bob should be 165mm (6 1/2") or 140mm (5 1/2") diameter. Also supported is the compensation pendulum with a 200mm (7.87") bob diameter that has a special regulation screw on top.
Movement plate size: 158mm H x 230mm W.
Plate thickness: 2.8mm
Hand shaft length: 56.3mm L.
The movement includes the rack, hammers, suspension spring, three cables, and hand nut on front hand shaft. The movement does not include the hands, pendulum leader, pulleys, winding crank, pendulum, seat board/mounting hardware, or the nine tubular bells.
Kieninger clock components are available for purchase at the below links:
Kieninger crank with large knob
Kieninger crank with small knob
Kieninger KSU/MSU Serpentine 9 1/2" Dial Hands
The HTU-06 movement is New Old Stock (NOS) and does not have a factory warranty. The reliable movements have been recently lubricated and ready for the easy installation into your grandfather clock.
This movement was used by many clock manufacturers such as Sligh and Howard Miller.
Recommend using the German made Etsyntha 859 oil for lubrication.
Made in Germany.
