Product Description

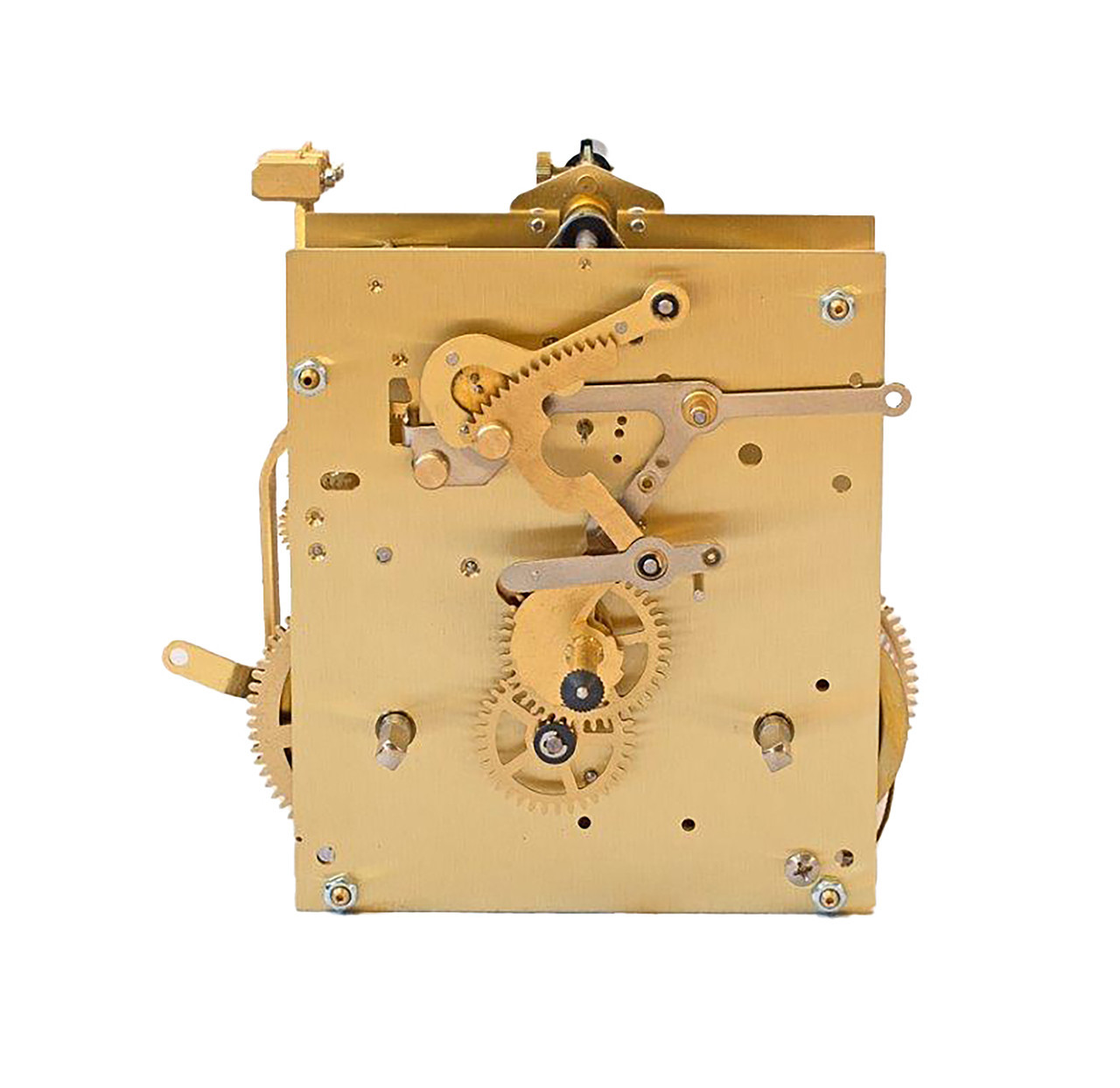

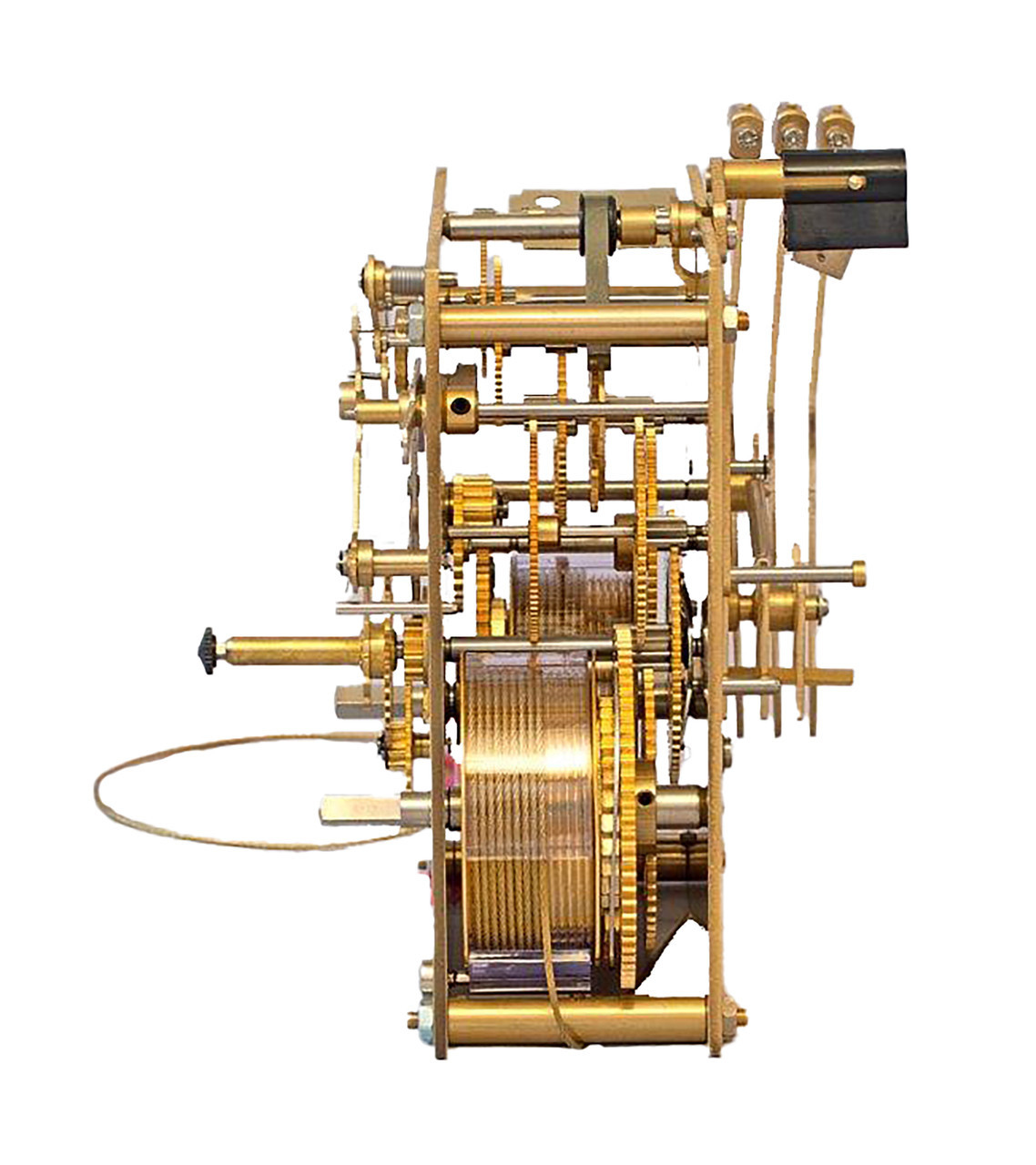

KIENINGER PS-39 BIM-BAM CHIME MOVEMENT - 65CM PENDULUM
Kieninger PS 39 is a cable driven two-spring wind movement (two weights) with an 65cm pendulum. Strikes the 1/2 hour on three rods with three side hammers. Four bronze bushings (2nd wheel), removable spring barrels, snap-back mounting system supports rear or front movement mounting, and strike shut-off.
Plate size: 99 x 144 x 2.0mm. Hand shaft length 32mm.
The movement supports a recommended grid or wood stick or metal rod or compensation style pendulum. The grid pendulum bob should be 140mm (5 1/2") diameter, and if a wood stick pendulum the bob should be 140mm (5 1/2") or 115mm (4 1/2") or 100mm (4"). Also supported is a metal rod pendulum with a bob at 80mm (3.14") or 70mm (2 3/4"). A compensation pendulum with a special regulation screw on top has a 140mm (5 1/2") bob diameter.
Kieninger movements are new and all have been tested prior to shipment.
This movement was used by many clock manufacturers such as Sligh and Howard Miller.
Recommend using the German made Etsyntha 859 oil for lubrication.
Made in Germany.
Limited Kieninger Movement Warranty:
The PS 39 new movement comes with a 5-year prorated replacement warranty against failure from manufacturing defects. If requested, we will try to repair the unit up to three years. The returned movement must be received without markings, modifications, or damage. The warranty is limited to the replacement of the movement or part.
Contact us to receive return instructions.
