Product Description

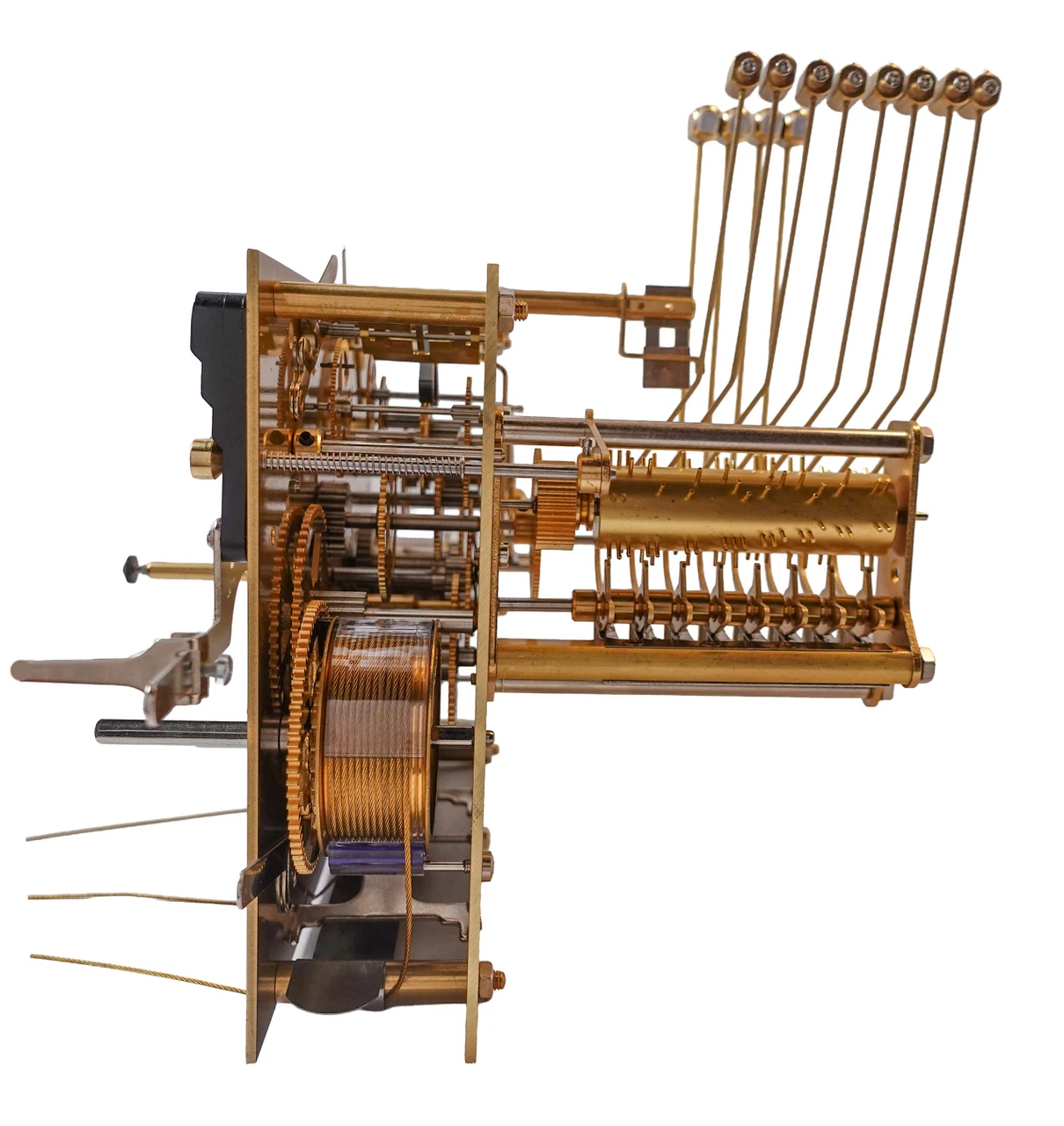

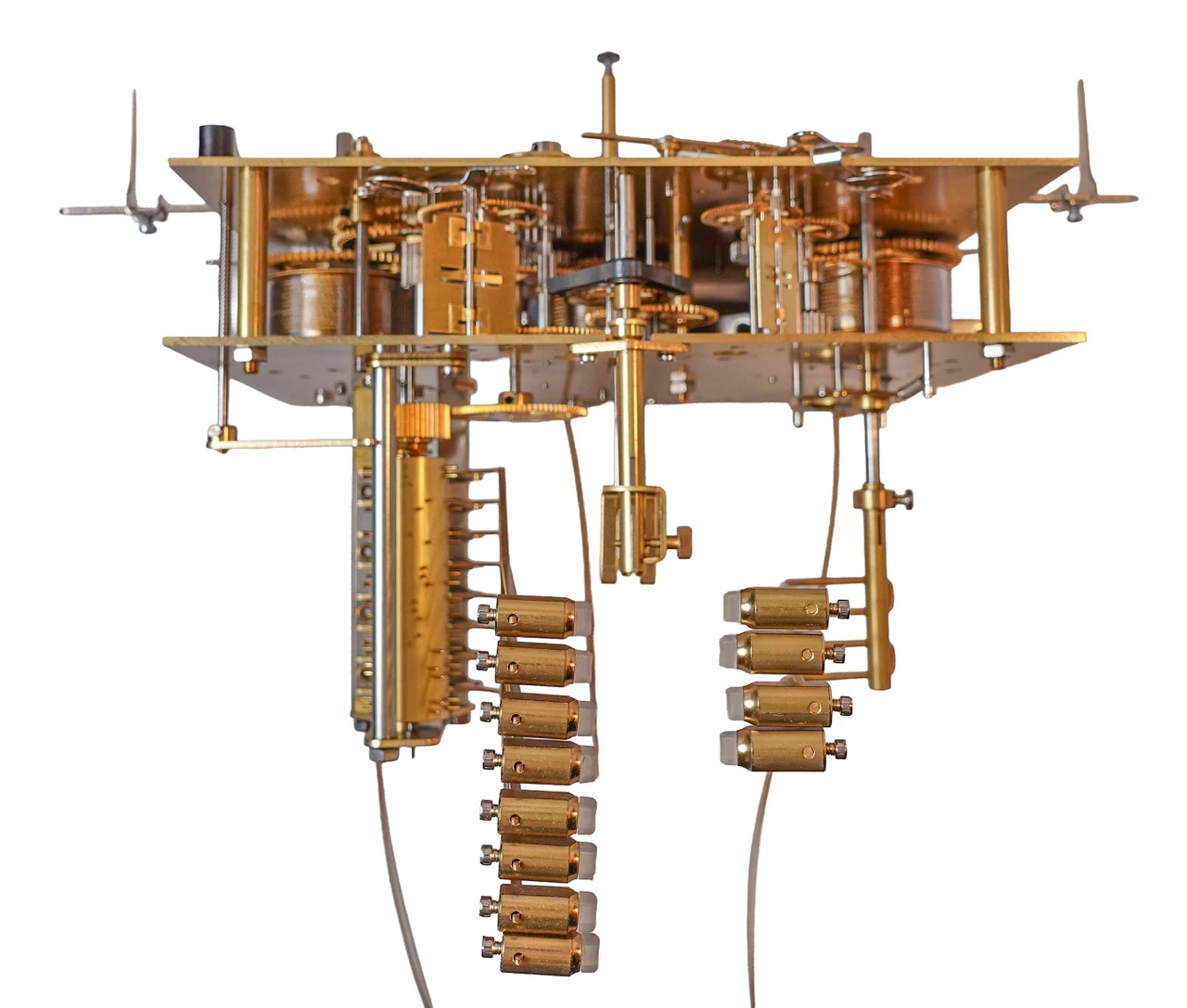

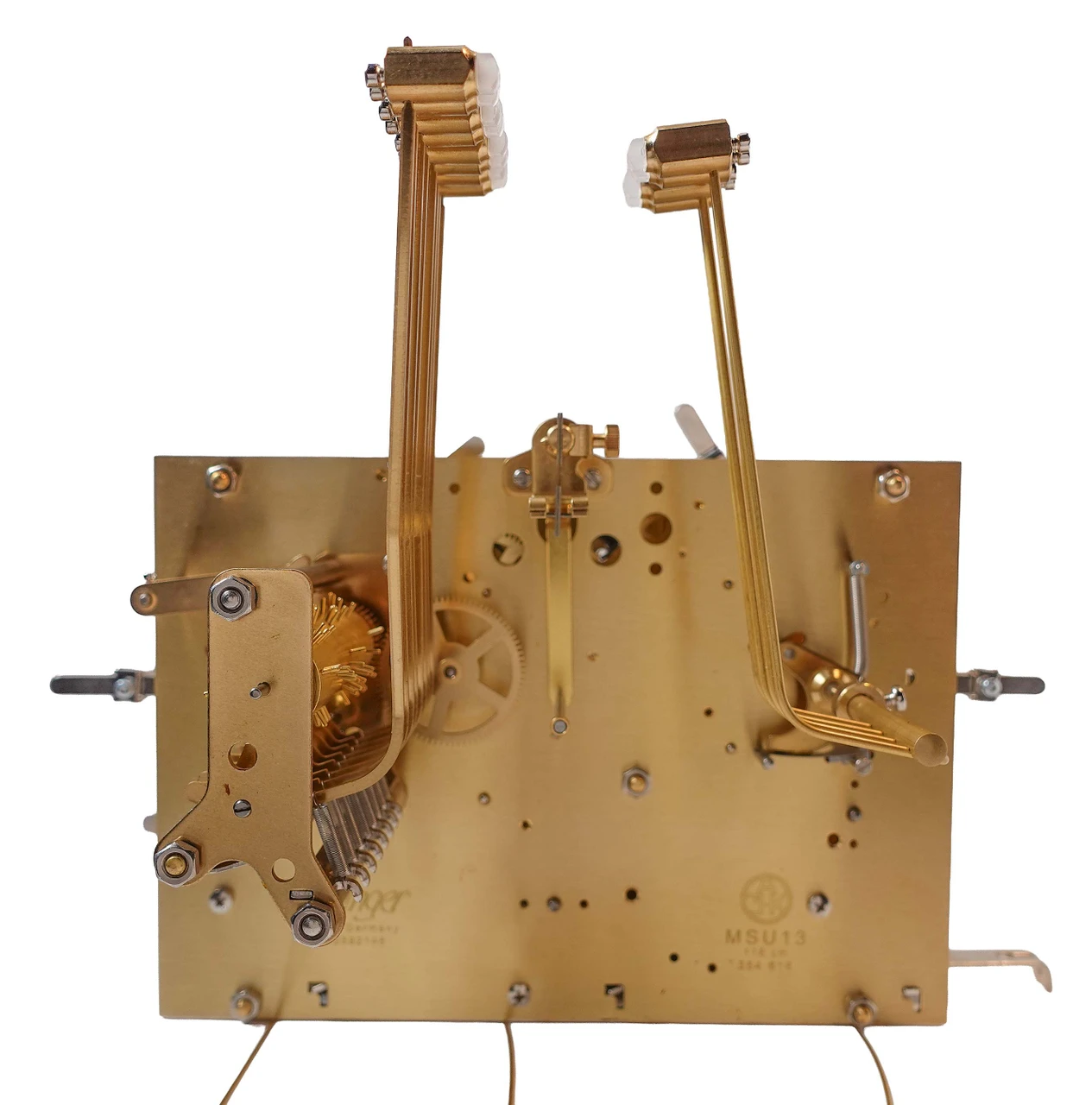

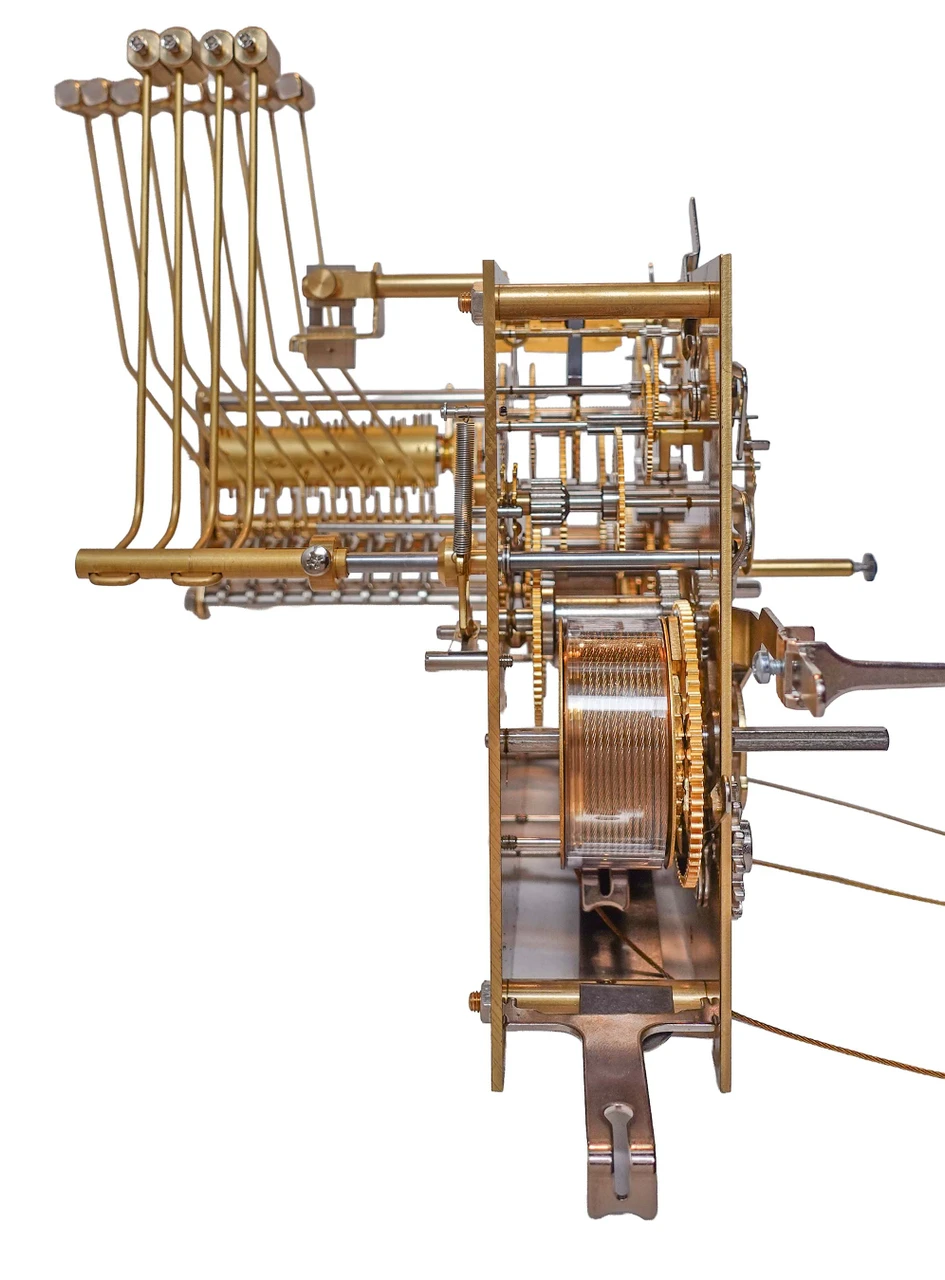

KIENINGER MSU13 116CM TRIPLE CHIME CABLE MOVEMENT - HOWARD MILLER DIRECT OEM REPLACEMENT
Kieninger MSU13 cable-driven three weight movement geared for 116cm pendulum.
Exact second beat: 3,600 beats per hour.
The movement right selector supports triple-chimes (12 rear hammers in an 8x4 configuration): Westminster, St. Michael, and Whittington. The left selector supports night shutoff, silent, and strike. The night shutoff is the ANSO (Auto Night Shutoff) feature. When the ANSO night shutoff is activated the chimes or strike are automatically turned off between 10:00 p.m. and 7:15 a.m.
The movement supports a recommended 116cm lyre or wood stick style pendulum.
The movement plate measures 142mm height × 200mm width × 2.0mm thick. Hand shaft length is 47.5mm.
The movement includes the suspension spring, three cables, and hand nut. The movement does not include the hands, pendulum leader, pendulum, or the seat board/mounting hardware.
Howard Miller Factory Original part number: 354616. Also used by Sligh and Ridgeway companies.
Used on Howard Miller models: 610-811, 610-898, 610-904, 610-907, 610-939, 610-940, 610-999, 611-001, 611-009, 611-015, 611-025, 611-032, 611-034, 611-036, 611-042, 611-044, 611-062, 611-066, 611-094, 611-124, 611-132, 611-142, 611-144, 611-180, 611-188, 611-190, 660-220, 660-245, 660-246, 660-290, 660-292, 660-310, 660-330, 660-332, and 660-346.
Used on Ridgeway models: 2505, 2509, 2517, 2557, and 2563.
New movement - never used. Direct from Howard Miller (USA) or Kieninger (Germany).
Movements are lubricated prior to shipment using high-quality Etsyntha 859 oil recommended by Kieninger. Ready for installation.
Movement only FREE SHIPPING applies to UPS standard ground or USPS ground advantage within the 48 contiguous U.S. states only. Ships on business days only.
There is an 18% restocking fee if the movement is returned. All returned movements must be shipped with insurance in the original packaging with no modifications.
Kieninger clock components are available for purchase at the below links:
Kieninger crank with large knob
Kieninger crank with small knob
Kieninger KSU/MSU Serpentine 9 1/2" Dial Hands
Weight set complete assembly or single shells only
Limited Movement Warranty:
The movement has a 2-year prorated replacement warranty against failure from manufacturing defects. The warranty does not cover defects caused by normal wear, usage, abuse, misuse, alteration, or failure to clean and lubricate. At our option, we will repair or replace the movement. The returned movement must be received without markings, modifications, or damage in the original carton and packaging. Shipping is the responsibility of the consumer. The warranty is extended to the original buyer with proof of purchase. The warranty does not cover costs associated with movement removal / replacement, service, or any other expenses. Contact Griffen's for return authorization.
