RHYTHM QUAD CHIMING QUARTZ PENDULUM MOVEMENT KITS
Kits come with a quality Rhythm quartz movement that plays Westminster, 4x4 Westminster, 4x4 Ave Maria, or Bim-Bam. 4x4 strike modes chime quarterly and on the hour with the sound of a tubular bell grandfather clock movement. Melodies without the 4x4 will not chime on the quarter hour.
Monitor button to demonstrate the hourly strike. Volume control, night silence between 11:00pm and 5:45am, and 24 hour "on" or "off" selector. 2 5/8" (66mm) round speaker with 18" electrical cord. Includes hardware.
I-shaft hand length is .85" (21.7mm). I-shaft means the minute hand must have an oblong hole. The hour hand should have a round hole. Thread length: 9/16" (14mm). Will fit a dial up to 7/16" thick.
Requires two C batteries - not included.
Movement size: 4 9/16"W x 4 3/4"H x 1 1/8"D.
Kit 1: Kit has maltese hands for a 4" dial (hour: 1 5/8"L, minute: 2 1/16"L as measured from hole center to tip).
Kit 2: Kit has serpentine hands for a 6" dial (hour: 2 5/16"L, minute: 3 1/8"L as measured from the hole center to tip).
Kit 3: Kit has spade hands for an 8 1/2" dial (hour: 3 1/6"L, minute: 4 5/16"L as measured from the hole center to tip).
All kits include:

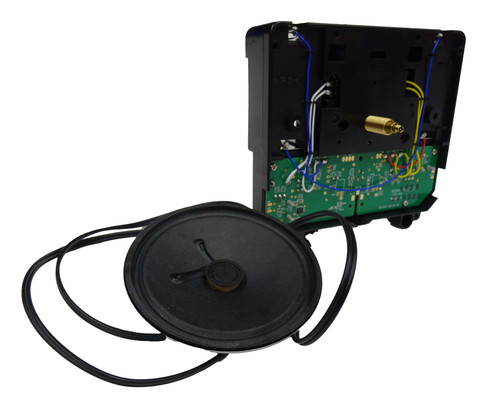

- MPR-4x4A Rhythm Quartz Battery Movement and speaker
- 15 1/2" pendulum break away brass rod
- 2 3/4" polished bob
- Set of hands per kit option
- Dial and hand mounting hardware
These battery units can be used to replace the Hermle 2214 quartz pendulum movements. If a non-pendulum Hermle 2114 is desired see: Hermle 2114 Non-Pendulum Movement
Recommend using alkaline batteries. If the clock begins to lose time or chime weakens, this is a sign of weak or exhausted batteries.
Used by many clock companies such as Howard Miller and Hermle.
