Product Description
CHIME ROD SET SLANTED WESTMINSTER 5 ROD - BOTTOM MOUNT

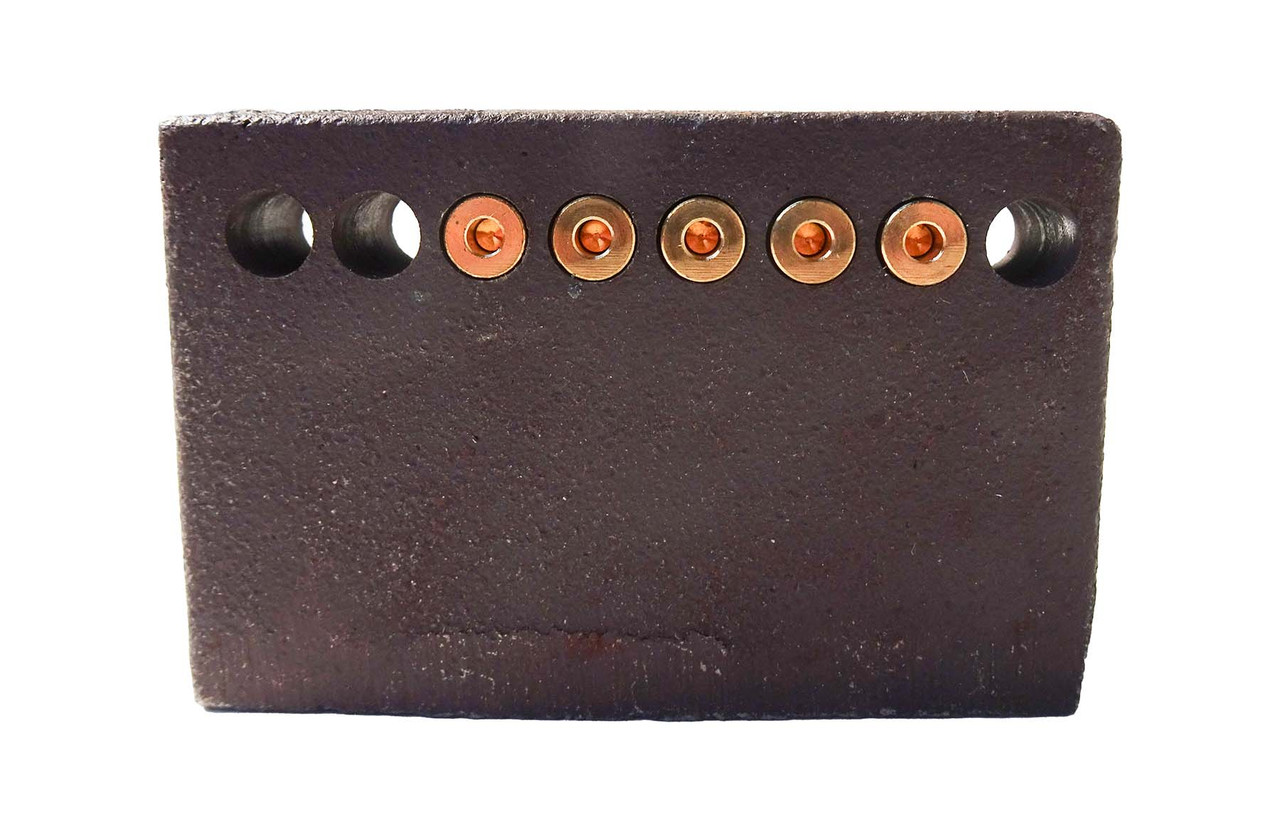

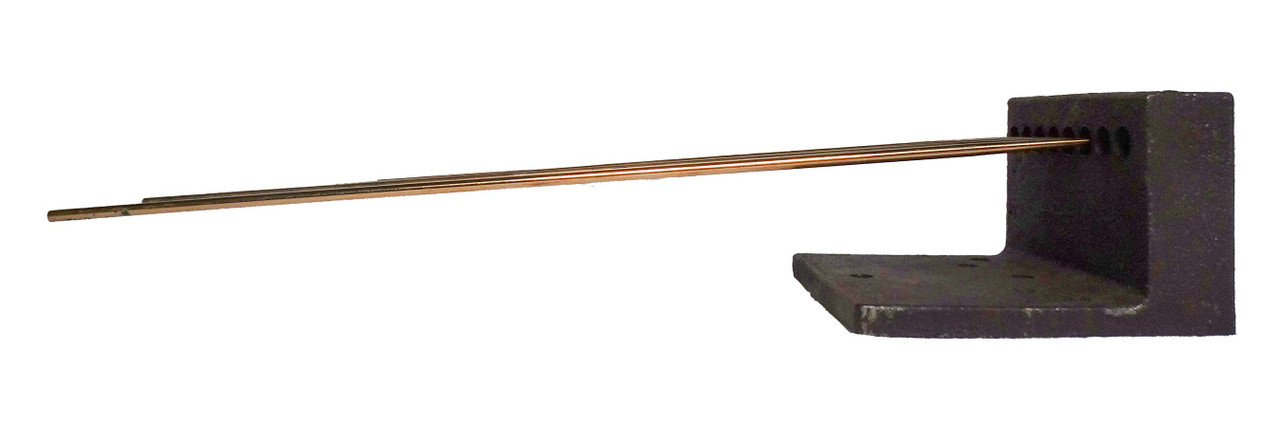

Westminster chime horizontal chime rod set. Copper press in rods. Rods are mounted in the block at a 4o angle from top block edge. Longest rod 250mm (9.84") and shortest rod 7". Number of Rods: 5. Chime block is for a bottom mount in case. Rods are located at the top of the base and are 38.1mm (1.5") from base foot bottom.
Block is 70mm(2.77")L x 70mm (2.77")W x 1.5"H.
Base foot mounting hole as measured from back of block to hole center is 24.4mm (.96") and then distance between two holes is 35.7mm (1.41")L. Mounting holes for M5 machine screws.
Hermle B225-00570. Used for Hermle 340-020 and 341-020 movements.
Made in Germany by Hermle.
