Product Description

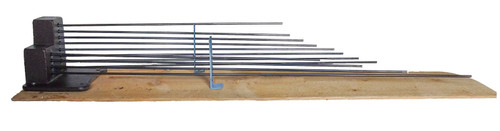

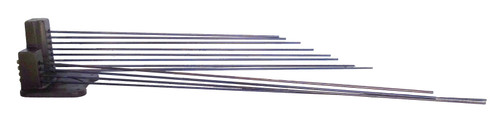

HERMLE - KIENINGER CHIME ROD SET V-SHAPED 8X4 TRIPLE CHIME
Original German v-shaped triple chime rod sets. Steel. Fits the 1151 or 1161 Hermle movements, and the Kieninger KSU or other German made movements. Chime block is back mount.
Two options:
1) Fixed press-in chime rods.
2) Screw-in chime rods.
Longest Rod: 680mm (26 3/4").
Number of Rods: 12 in an 8 x 4 configuration. Eight rod side: 680mm (26 3/4") longest and 23 1/2" shortest. Four rod side: 22 1/2" longest and 16" shortest.
Mounting block size: 118mm (4.65") L x 53.010mm (2.09") W. Mounting holes: short width side 33.020mm (1.30") and long length 100mm (3.94").
V-shaped triple chime rod sets to be used for 8 x 4 hammer configuration movements:
HERMLE: 1051-850, 1151-050, 1151-053, 1161-050, 1161-053, 1161-850, 1161-853H, 1171-050, and 1171-850.
KIENINGER: KSU 78 or 79 or 80, MSU 05 or 13, KKU 26, and KSU 50 or 51.
