Product Description
HANSEN K692LL/37759L/37723L 1 RPM 4W
Authorized supplier of Hansen Synchron motors. All motors are factory red sealed.
811039 Hansen Synchron K692LL/37759L/37723L is a 1 RPM, 4W, 110V, 60 Cycles, Left Rotation (counter clockwise), and Style A (4 mounting holes). Note: motors are marked on the side perimeter.
The rotation is determined when looking at the shaft.
The mounting holes from side to side are 2" center-to-center. The two holes on each side are .75" center-to-center.
The T-shaft is 3/8"L as measured from the bushing to the tip with a T bar.

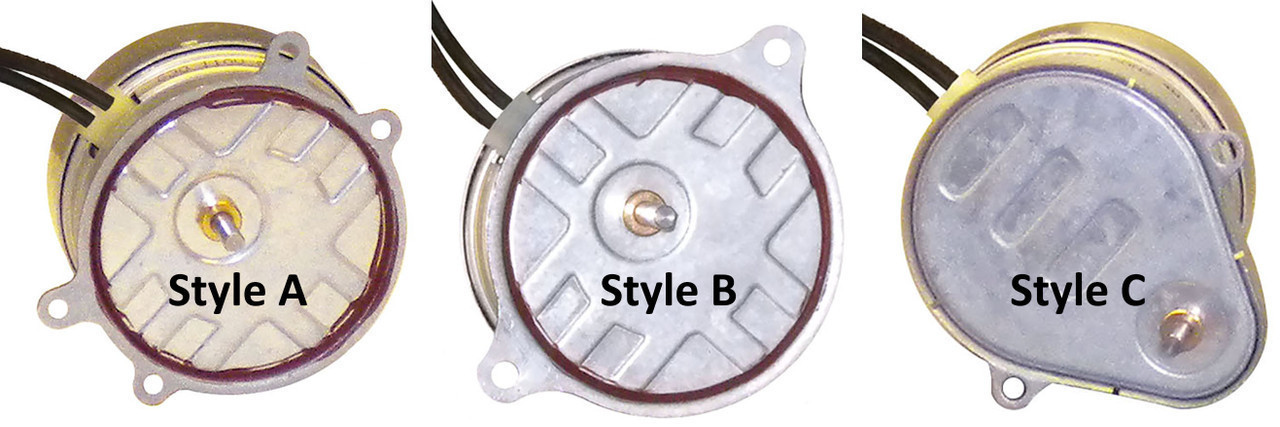

Hansen Synchron Motor available options, see table below. These motors come in three different form factor styles: Style A, Style B, and Style C. The R = right rotation (clockwise) and L = left rotation (counter clockwise). The rotation is determined when looking at the shaft. The R = right rotation (clockwise) and L = left rotation (counter clockwise). The rotation is determined when looking at the shaft. Also noted below are compatibility options for Haydon and Latham Time Recorder.
